PRODUCT DETAILS
PRODUCT SPECIFICATIONS

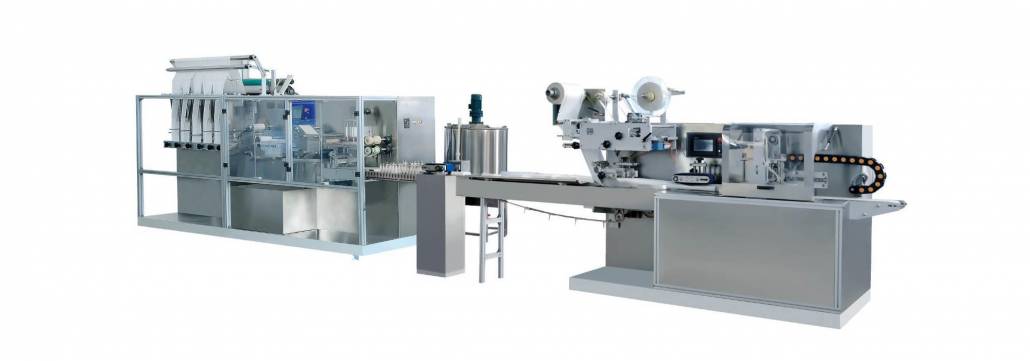

- Model: DH-6F
- Output product type: 30-120 pulls/pack
- Loading station: one stations/ one Jumbo roll
- Full automatic: 6 (5) lanes tissue converting machine + one flow pack packaging machine (No Human Touch）
- Work flow: Auto material loading → tissue slitting → Tissue folding→ online wetting → tissue cutting →stacking & counting →auto tissue delivery to packaging machine → punching →labeling →sealing →finished product output
- Capacity: Converting speed: 1200-1600pcs/min | Packaging speed: 15-20 packs/min
- Control system：PLC + Full servo driven system
- Suitable material: [35-80gsm] spun-lace nonwoven/ biodegradable material
- Open tissue size:(70-170)x(160-220) mm
- Folded tissue size:(70-170)x(80-110) mm
- Packing size:(150-300)x(50-120)x(10-100)mm
- Folding ways: “Z” non-pop up/ ”N” fold
- Wetting system: online-wetting
- Power: AC380V 50/60Hz | 8 kw
- Operation interface: Swing arm touch screen
- Machine size: 8000×2600×1950 mm(L*W*H)
- Machine weight: 3800kg
PRODUCT DIMENSION
VIDEO
Do You Still Have Questions? We Can Assist You!
Our sales staff is here to help if you can’t find the answer you’re looking for. Please contact us if you have any questions about our products, prices, or anything else; we would be happy to assist you!
What is the production capacity of the DH-6F wet wipes machine?
The DH-6F operates at a converting speed of 1,200 to 1,600 pieces per minute and a packaging speed of 15 to 20 packs per minute, making it suitable for medium to high-volume production of wet wipes.
What types of materials are compatible with the DH-6F?
This DH-6F machine is designed for producing wet wipes using spunlace nonwoven and biodegradable materials with a basis weight of 35 to 80 gsm, accommodating both eco-friendly and traditional options.
Which folding styles does the DH-6F support?
The DH-6F offers “Z” (non-pop-up) and “N” fold configurations, providing flexibility to accommodate various packaging and dispensing preferences.
What are the dimensions of the wet wipes produced?
-
Open tissue size: 70–170 mm (width) x 160–220 mm (length)
-
Folded tissue size: 70–170 mm (width) x 80–110 mm (length)
-
Packing size: 150–300 mm (length) x 50–120 mm (width) x 10–100 mm (height)
How automated is the DH-6F production line?
The DH-6F utilizes a fully automated, no-touch production process that includes automatic material loading, tissue slitting, folding, online wetting, cutting, stacking, counting, packaging, punching, labeling, and sealing.
What control systems are integrated into the DH-6F?
The DH-6F machine features a PLC and a fully servo-driven system, along with a swing arm touch screen interface for precise control and user-friendly operation.
What are the power requirements for the DH-6F?
The DH-6F operates on AC 380V, 50/60Hz, with a power consumption of 8 kW, making it suitable for industrial manufacturing environments.
What are the physical dimensions and weight of the DH-6F machine?
-
Machine size: 8,000 mm (length) x 2,600 mm (width) x 1,950 mm (height)
-
Machine weight: Approximately 3,800 kg
Is the DH-6F suitable for producing eco-friendly wet wipes?
Yes, the DH-6F is designed to work with biodegradable materials, allowing for the production of environmentally friendly wet wipes.
What support and services does DROID offer for the DH-6F?
DROID offers extensive support, including after-sales service, FDA GMP clean room design, and assistance with wet wipe manufacturing.
