UT-FL2 Cross-fold Wet Wipes Machine Running Demo
PRODUCT DETAILS
Features

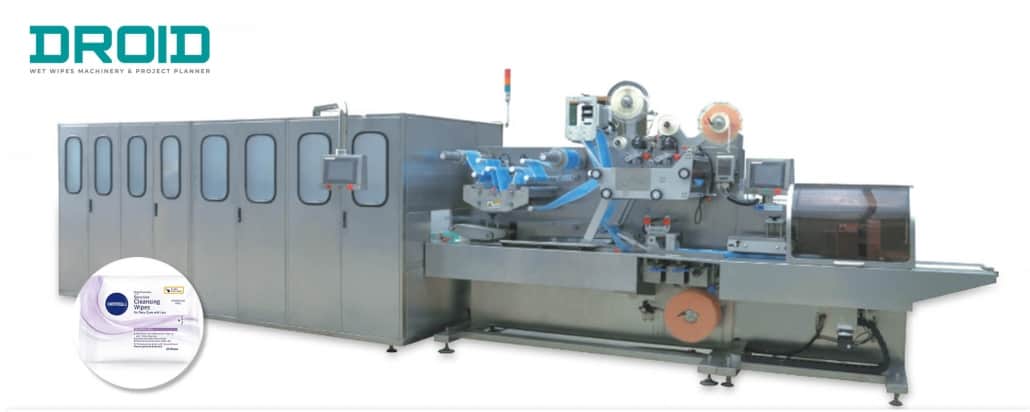

UT-FL2 automated crossfold wet wipes machine is composite of one converting machine and one packaging machine.
It is capable of producing pocket sized wet wipes in a broad range of product dimensions at the speed of 1000pcs/min on converting machine and 100packs/min on packaging machine.
UT-FL2 features a great flexibility as it is designed to make a vast variety of wet wipes in a pack of 5-40 sheets such as mini wipes, pocket wipes, portable baby wipes, bed bath towel, refreshing wet tissue, skincare wet wipes, antibacterial wet wipes, disinfecting wipes, sanitizing wet wipes, makeup removal wipes, personal hygiene wipes and intimate wipes.
- Output Product: all types of wet tissue (5-40pcs/pack)
- Structure：Wet tissue converting machine +Flow wrap wet wipes packaging machine
- Machine design in compliance with FDA GMP hygiene & safety standard
- Full Servo driven and CPU control system
- Highly automated with no need for human interference throughout the production process
- Precise wetting system: deviation of +-3g per pack
- Tissue & Packing length and width size changed by servo system, no mechanical adjustment needed
- All conveyor belts are food-grade, anti-bacterial and suitable for hygienic product transfer
- 304L Stainless steel is applied to the cover of machine and main spare parts in contact with lotion and fabric
- Easy and quick change over between different formats
- User-friendly HMI with touch screen
- Visual & audible warning systems
- Machine stops automatically when machine breaks down
- Structure: (1) raw material loading device(2) Automated raw material change-over system; （3）tension device, (4) folding device, (5) Quantitative wetting system, (6) automatic counting device, (7) auto die cutting unit, (8) auto labeling unit,(9) auto film change-over system(10) Auto-Electrical eye tracking (11) Auto air-rejection unit;(12) servo driven sealing unit for finished products.
Work Flow:
Automated Nonwoven loading→ tension control → tissue slitting →tissue folding→ Precise online wetting→ tissue cutting→ tissue stacking & counting →tissue wait-in-line→automated tissue delivery to packaging machine→ bag forming →die cutting→ labeling→ gusseting →auto air venting → sealing→ finished product output
Product Parameters
- Model: UT-FL2
- Output product type:5-40wipes/pack
- Capacity: Converting speed: 1000 pcs/min | Packaging speed: 100packs/min
- Automatic Non-stop raw material change-over system

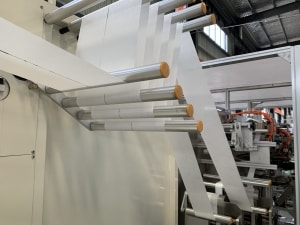

- Loading station：Two rolls；one running，one standby
- Full automatic: 2 lanes tissue converting machine + one flow pack packaging machine (No Human Touch）
- Control system：CPU + Full servo driven system
- Suitable material: [35-80gsm] spun-lace nonwoven/ biodegradable material
- Open tissue size:(140-200)x(100-200) mm
- Folded tissue size: (70-100)x(40-100) mm
- Packing size:(100-200)x(40-105)x(5-80)mm
- Folding ways: CrossFold
- Power: AC380V 50/60Hz | 15kw

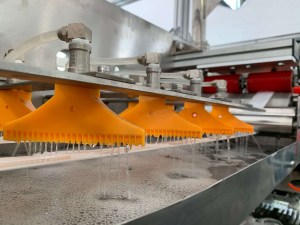

- Wetting system: Quantitative online-wetting
- Operation interface: Swing arm touch screen
- Machine size: 14500×1350×2100mm(L*W*H)
- Machine weight: 6500kg
Mini Wipes (5pcs/pack)
Output Product:
Personal care wipes:
Baby wipes
Bed bath wet towel
Disinfectant wipes
Antibacterial wipes
Medicare wipes
Hand sanitizing wet wipes
Beauty wipes
Hygiene Wet Wipes
Feminine wipes
Pets wipes
Biodegradable wet wipes

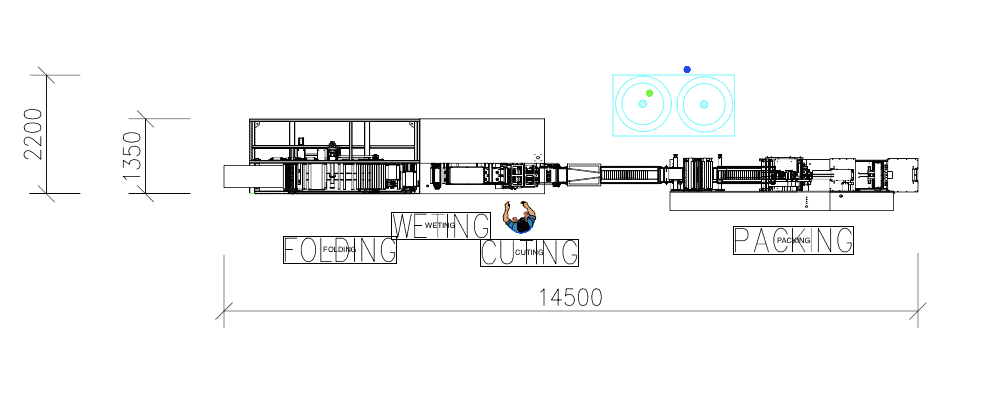

Machine Layout
